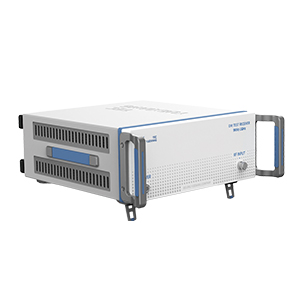

YS9010 EMI test receiver
EMI test receiver is an automatic radio disturbance test receiver, which is the main tool for conducting EMI tests.
产品
inventory:999
YS9010 EMI test receiver
Frequency range: 9kHz-1GHz, automatic generation of test reports
- SAM-6837030395-15-L1-4W
- 有货
如果您需要的数量多于在线数量，请联系我们。
The EMI test receiver is a fully automatic radio disturbance test receiver that is the primary tool for conducting EMI testing. The frequency range is 9kHz-1GHz, and it is developed and designed in accordance with standards such as: 2010 and GB/T6113.101-2016, to meet the requirements of compatible standards.
| 技术细节 | |
|---|---|
| Measurement Frequency Range | 9kHz-1GHz |
| Standing Wave Ratio | 1.2(RFATT>10dB);2.0(RFATT=0dB) |
| Detection Method | Mean Value、Quasi-peak Value、Peak Value |
| Level Measurement Range | From (noise level + 6dBμV) to 120dBμV |
| Shielding Effectiveness | Within the frequency range of 9kHz to 1000MHz, under a field strength of 3V/m, the error is less than 1dB. |
| Spurious Signal | No more than 3 points, with a level less than 30dBuV |
